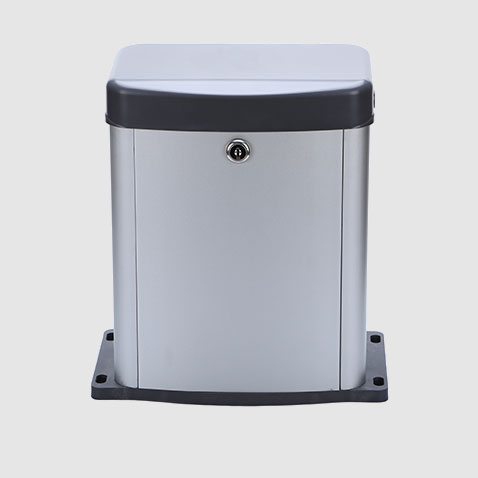

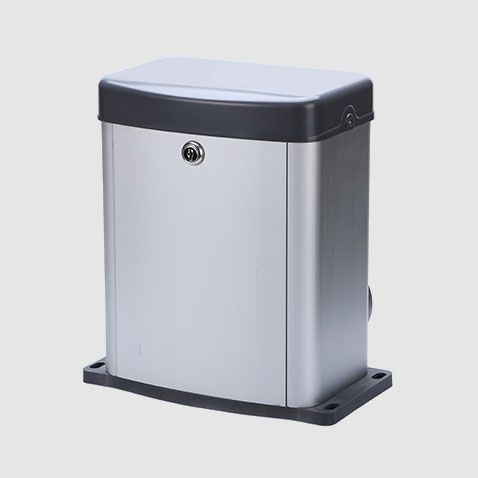

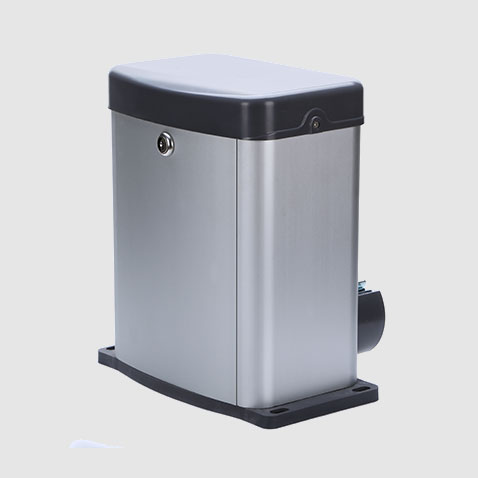

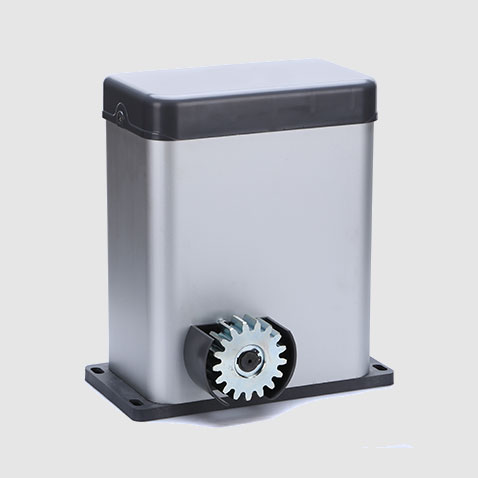

Residential / Light Commercial Slide Gate Operator
< The HQD300 gate operator designed for residential use, weight up to 300 Kg and operating distance up to 8 meters.
< CE Certified.
< Built-in control board and 24V/4.5Ah backup battery.
< User can select auto-close function.
< Solar system compatible.
< Brushed aluminum shell, novel appearance.
< DC24V motor with built-in control unit.
Product Description
Material : | Aluminium Alloy | Certification : | CE Certified Product |
Limit Switch : | Electronic Limit Switch | Max. Gate Weight : | 300KG |
Operation Voltage : | AC 110V / AC 220V | Operation Temperature : | -20°C to 70°C |
| Drive Method: | Gear | Colors : | Silvery Gray |
Main Features
> The automatic timer function that closes your gate after a pre-defined period, or the option to open the gate only partially for people to pass through.
> In the event of a power failure, the rotation of the (key protected) release device makes it possible to open and close the gate manually.
> The soft start and soft stop function guarantees stable, quiet gate travel.
> Can be equipped with solar panels, warning lights and infrared alarm and other safety equipment; it can be connected with access control system to realize automatic identification and access control.
> The gate encounters obstacles or pedestrians, when it is opening, the gate will stop operation, if the gate encounters obstacles or pedestrians when it is closing, the gate will automatically retract.
> DC 24V motor with built-in control unit and DC 24V 4.5Ah battery allows the gate to be opened and closed normally when there is power failure.
| Input Voltage: | AC 220V/50Hz; AC 110V/60Hz | Motor Power: | DC 24V/100W |
| Working Temperature: | -20°C to 70°C | Gate Moving Speed: | 13m/min |
| Limit Switch: | Electronic Limit Switch | Driving Weight: | Gear |
| Work Duty: | S2 20min | Remote Control Mode: | Single Button Mode |
| Remote Control Range: | ≥30m | Receiver Frequency: | 433.92Mhz |
| Maximum Gate Weight: | 300KG | Package Weight: | 10KG |
| Output Torque: | 8N.m | Output Shaft Height: | 46mm |
| Noise: | ≤60dB | Backup Battery: | DC 24V 4.5Ah |
