Automatic Folding Gate -H20

Hongmen H20 motorized retractable gate is specially designed to maximized the Opening of your entrance, H20 has the folding ratio of 10:1.17 whereby no other gates can match.


EX: When the gate is fully expanded, it is 10m; when the gate is fully folded, only take up less then 1.2m space.




都快来撒大家快来撒即可了 1.  CE Certified.



contact now

Product Description


 Material :

   Aluminium Alloy

Certification :

   CE Certified Product

 Operation :

   Wireless Remote Control

Wireless Band :

   433/434MHz

 Operation  Voltage :

   220V AC / 36V DC

Operation Temperature :

   -30°C to 50°C

Surface Treatment :

   Powder Coated

Colors :

   Silver /Gray /Customize





Main Features :


Motor Overload Protection

The motor has overload and overheating protection function to protect and prolong the life span of the motor. During an outage, the clutch can be disengaged to open the gate manually with easy & steady.

Specially Designed Structure

H20 has the folding ratio of 10:1.17 whereby no other gates can match, when the gate is fully expanded, it is 10m; when the gate is fully folded, only take up less then 1.2m space.

Multi-Language LED Display (Optional)

Equip with LED Display for additional security and visibility.

Smart Power Outage Clutch

Elegant key-type clutch can easily change to manual mode during a power outage by insert a special key into the hole of the clutch and turning it at 180 degree.

Anti- Collision IR Sensor

The gate to automatically retract when a person or object is detected as far as 30-50cm away, thus ensures the safety of vehicle and pedestrians.

Wireless Remote Control

Carry it on you and control the gates opening and closing conveniently any time, the control distance up to 50M.

Anti- Climb Photo Cell

The gate also equips with anti-climb alarm system, when there is an obstacle detected on top of the gates, the alarm system will turn on siren.

High Stability

Extra wide-base ensures stability and wind resistance of the gate.

Durable in use

All wheels of the gates are made of hard-wearing rubber, increase life span of the wheels and reduce noise during moving.

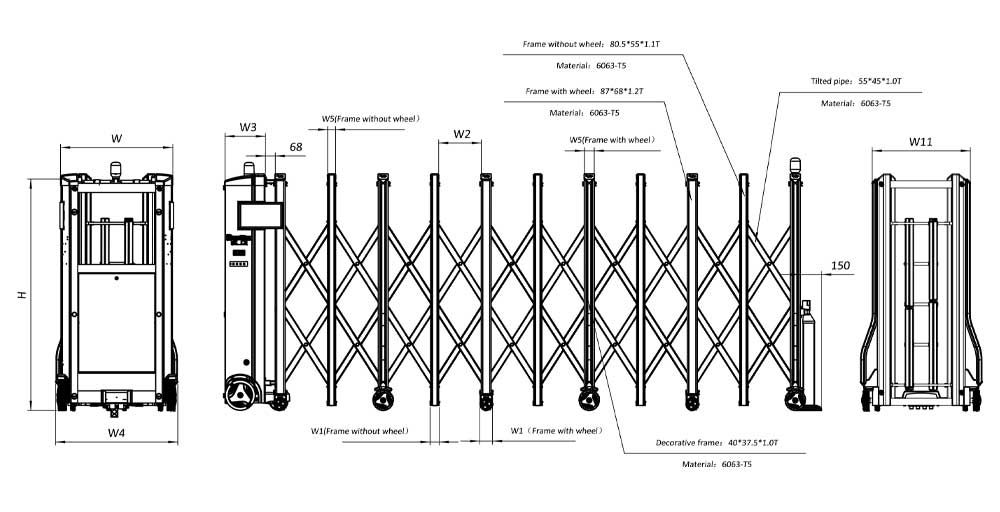

Product specification.png


Product Specifications
H
WW1W2W3
W4W5
 1.5m,1.63m,1.7m,1.8m,1.9m
 682mm
 With Wheels   Without Wheels   338.5mm
 286mm
 976mm
 With Wheels   Without Wheels
88mm63mm68mm55mm

 Electrical Specifications


Voltage  Current  Power  Operation Temperature    Relative Humidity    IP Rating    Insulation Grade    Moving Speed
  220V ±10% 50/60MHz  2.5A  200W/300W/500W  -30°C ~ 50°C≤90%IP44E20m/min





Warranty:


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)



Project Reference :






  Project Information:  CAINIAO logistics


  Product Model: H20


  Installation: Unilateral Opening


  Completion Date: 2016


  Services: Consultancy, Design, Manufacture, Installation, Commissioning, Maintenance








  Project Information:  The International Schools of North America


  Product Model: H20


  Installation: Unilateral Opening


  Completion Date: 2017


  Services: Consultancy, Design, Manufacture, Installation, Commissioning, Maintenance










  Project Information:  Public Security Bureau


  Product Model: H20


  Installation: Bilateral Opening


  Completion Date: 2017


  Services: Consultancy, Design, Manufacture, Installation, Commissioning, Maintenance
