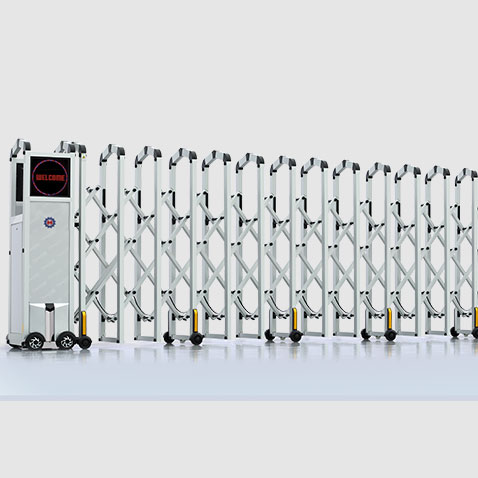

Automatic Folding Gate -W Series

The series produces a strong visual impact with its contemporary design, giving a new

meaning to modern technology.

都快来撒大家快来撒即可了 1.  CE Certified.



contact now

Product Description

 Material :

   Aluminium Alloy

Certification :

   CE Certified Product

 Operation :

   Wireless Remote Control

Wireless Band :


 Operation Voltage :

   AC 220V / DC 36V

Operation Temperature :

   -30°C to 50°C

Surface Treatment :

   Powder Coated

Colors :

   Silver /Gray /Customize


Main Features :

Motor Overload Protection

The motor has overload and overheating protection function to protect and prolong the life span of the motor. During an outage, the clutch can be disengaged to open the gate manually with easy & steady.

Multi-Language LED Display (Optional)

Equip with LED Display for additional security and visibility.

Intelling Self-Align(ISA) Motor (Optional)

The drive mechanism is used Intelligent AC Head Unit, intelligent digital navigation technology, trackless and automatic skew correction.

Windproof Structure

Wind-Resistant device enable the electric gate to operate in strong winds.

Trackless Operation

The gate does not need any rails/track to operates. It generates less noise compare to on trak gates.

Smart Power Outage Clutch

Elegant key-type clutch can easily change to manual mode during a power outage by insert a special key into the hole of the clutch and turning it at 180 degree.

Wireless Remote Control

Carry it on you and control the gates opening and closing conveniently any time, the control distance up to 50M.

Anti- Collision IR Sensor

The gate to automatically retract when a person or object is detected as far as 30-50cm away, thus ensures the safety of vehicle and pedestrians.

Anti-Climb Photo Cell

The gate also equips with anti-climb alarm system, when there is an obstacle detected on top of the gates, the alarm system will turn on siren.

Durable in Use

All wheels of the gates are made of hard-wearing rubber, increase life span of the wheels and reduce noise during moving.

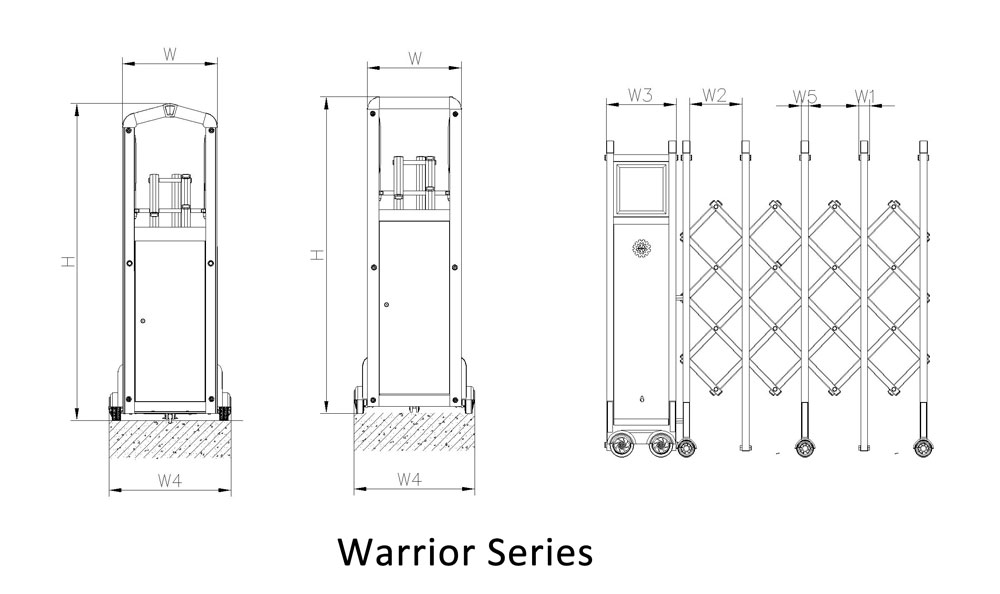

Product Specification

Warrior B Series


  475mm    55mm    265mm    372m m    615mm    35mm
  Warrior B Series (Flat Top)    1.3/1.4/1.5/1.6/1.7/1.8m    475mm    55mm    265mm    372mm    615mm    35mm

Electrical Specification
  Main Frame:  Inner Cross Tube:  Voltage:  Operation Temperature:    Relative Humidity:
  58*35*0.9 (Aluminum Alloy)      40*25*1.2 (Aluminum Alloy)    220V ±10% , 50/60Hz      -40°C~80°C    ≤90%
  IP Rating:  Insulation Grade:  Moving Speed:  Receiver Frequency:  Remote Distance:
  IP 44  E  15m/min  433MHz  50m(Empty Space)


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)

Project Reference :

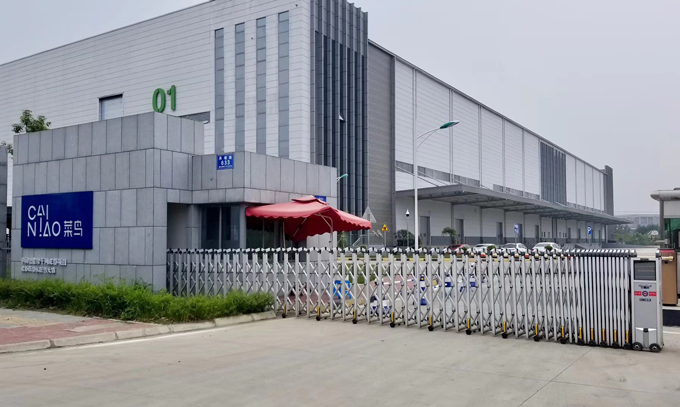

  Project Information:  CAINIAO logistics

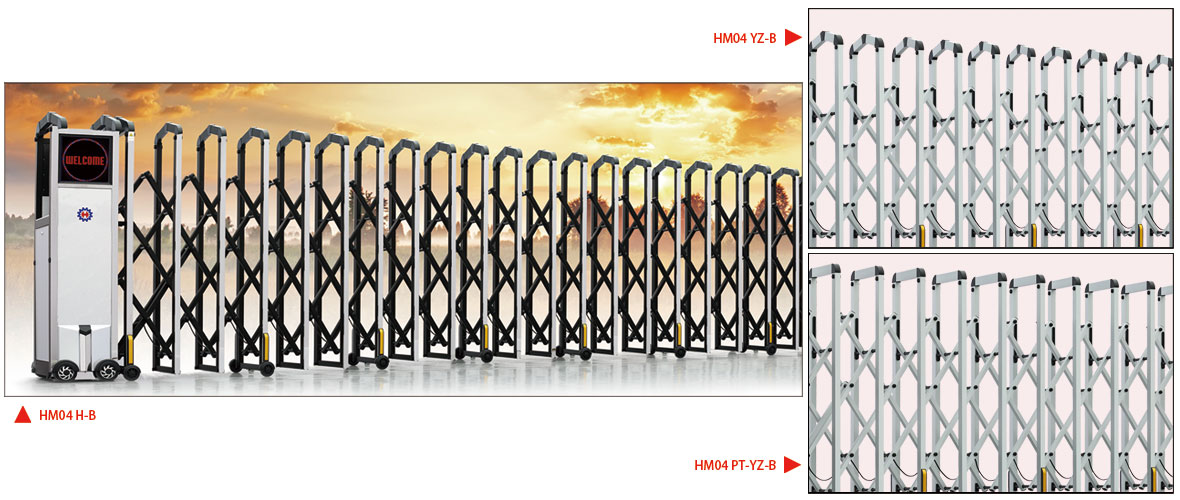

  Product Model: HM04 YZ-B

  Installation: Unilateral Opening

  Completion Date: 2016

  Services: Consultancy, Design, Manufacture, Installation, Commissioning, Maintenance


  Project Information:  Guangdong Museum

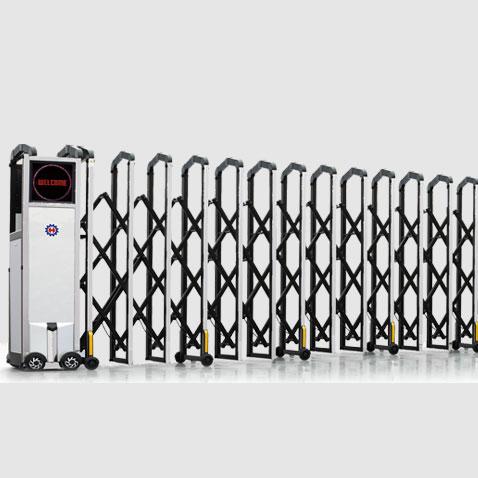

  Product Model: HM04 H-B

  Installation: Bilateral Opening

  Completion Date: 2010

  Services: Consultancy,Manufacture, Installation, Commissioning, Maintenance

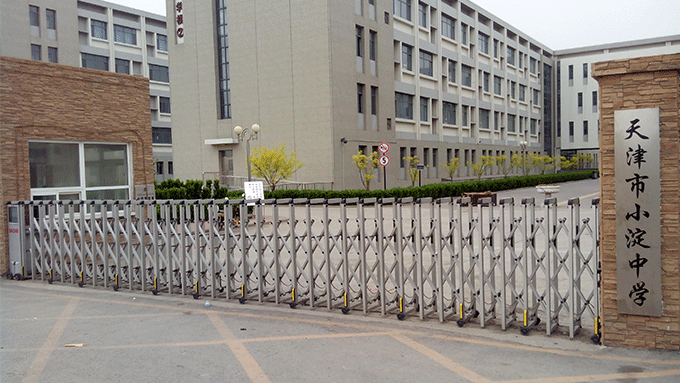

  Project Information:  Tianjin xiaodian Secondary school

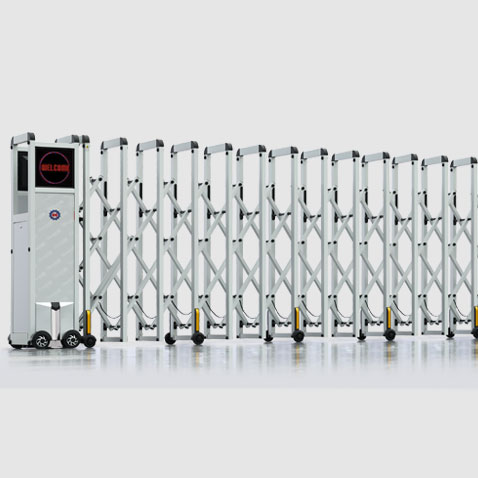

  Product Model: HM04 PT YZ-B

  Installation: Unilateral Opening

  Completion Date: 2015

  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance
