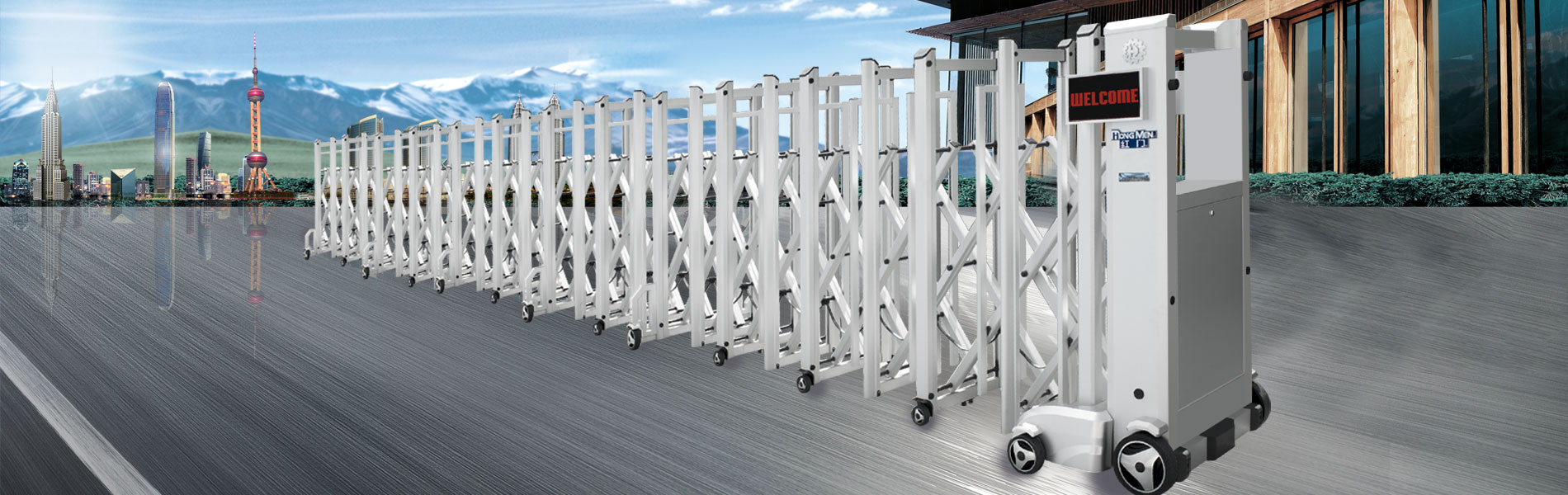

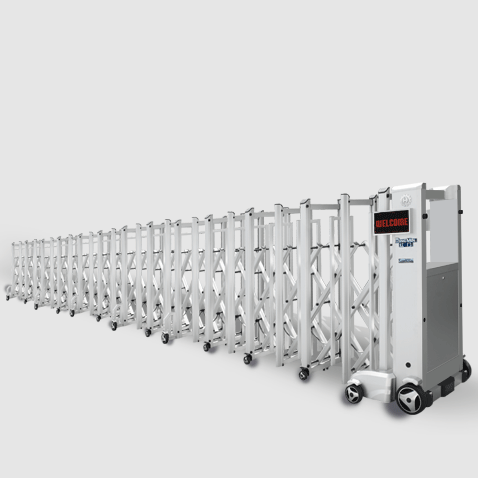

Hongmen H20 motorized retractable gate is specially designed to maximize the Opening of your entrance, H20 has the folding ratio of 10:1.17 whereby no other gates can match.
EX: When the gate is fully expanded, it is 10m; when the gate is fully folded, only take up less than 1.2m space.
Product Description
Material : | Aluminium Alloy | Certification : | CE Certified Product |
Operation : | Wireless Remote Control | Wireless Band : | 433MHz |
Operation Voltage : | AC 220V / DC 36V | Operation Temperature : | -30°C to 50°C |
| Surface Treatment : | Powder Coated | Colors : | Silver /Gray /Customize |
Main Features :
Motor Overload Protection
The motor has overload and overheating protection function to protect and prolong the life span of the motor. During an outage, the clutch can be disengaged to open the gate manually with easy & steady.

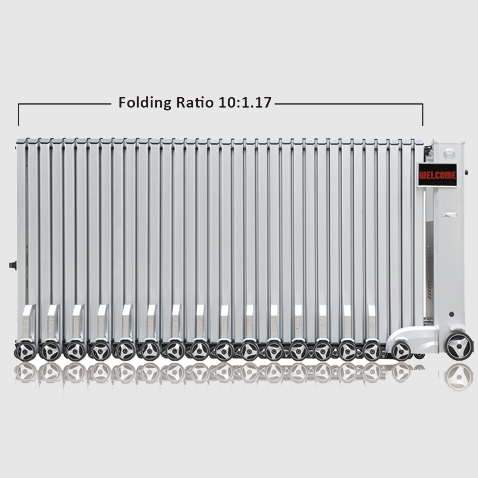

Specially Designed Structure
H20 has the folding ratio of 10:1.17 whereby no other gates can match, when the gate is fully expanded, it is 10m; when the gate is fully folded, only take up less then 1.2m space.
Multi-Language LED Display (Optional)
Equip with LED Display for additional security and visibility.
Smart Power Outage Clutch
Elegant key-type clutch can easily change to manual mode during a power outage by insert a special key into the hole of the clutch and turning it at 180 degree.
Anti- Collision IR Sensor
The gate to automatically retract when a person or object is detected as far as 30-50cm away, thus ensures the safety of vehicle and pedestrians.
Wireless Remote Control
Carry it on you and control the gates opening and closing conveniently any time, the control distance up to 50M.
Anti- Climb Photo Cell
The gate also equips with anti-climb alarm system, when there is an obstacle detected on top of the gates, the alarm system will turn on siren.
High Stability
Extra wide-base ensures stability and wind resistance of the gate.

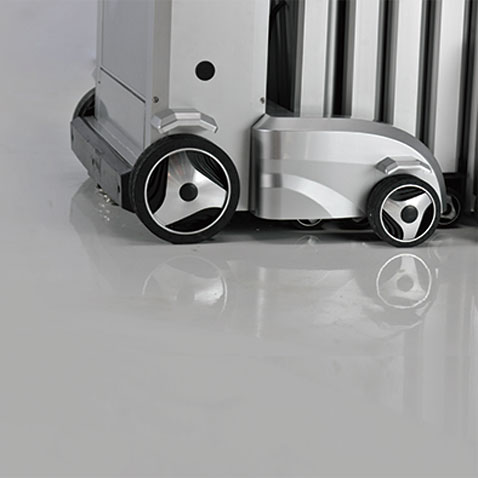

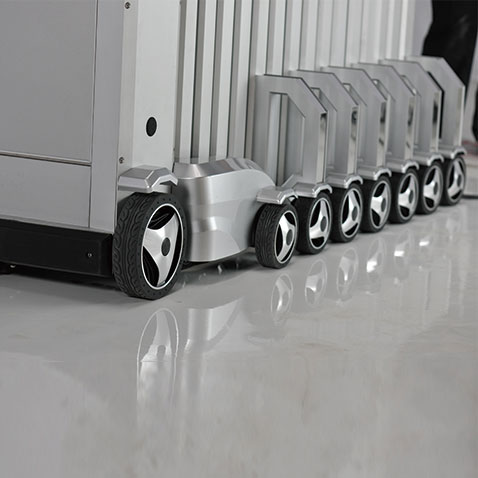

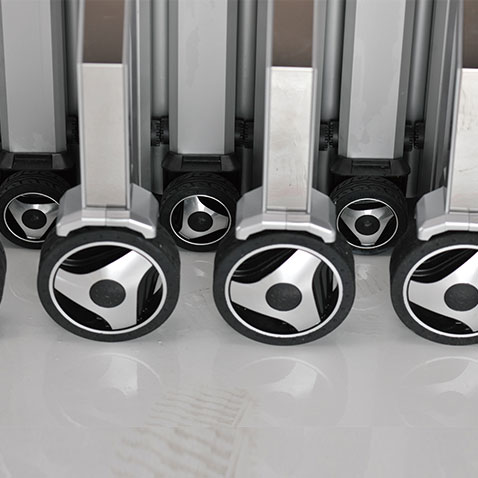

Durable in use
All wheels of the gates are made of hard-wearing rubber, increase life span of the wheels and reduce noise during moving.

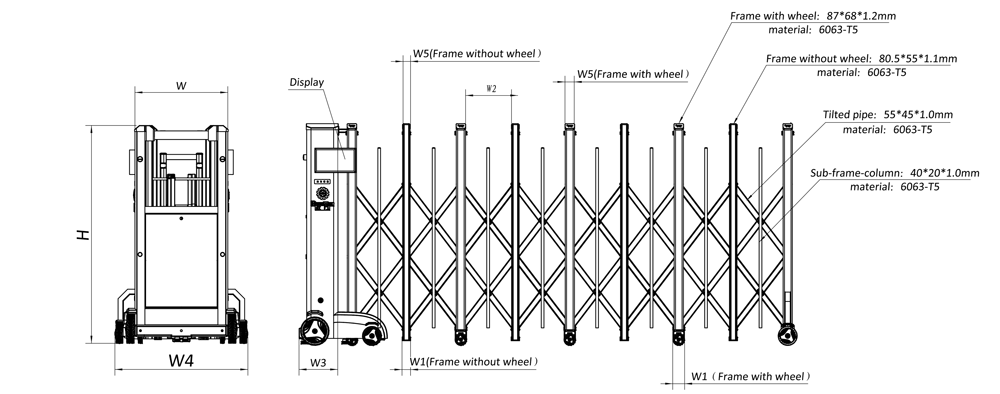

| Product Specification | ||||||||
| H | W | W1 | W2 | W3 | W4 | W5 | ||
| 1.5m,1.63m,1.7m,1.8m,1.9m | 682mm | With Wheels | Without Wheels | 338.5mm | 286mm | 976mm | With Wheels | Without Wheels |
| 88mm | 63mm | 68mm | 55mm | |||||
| Electrical Specification | |||||||
| Voltage: | Current | Power: | Operation Temperature: | Relative Humidity: | IP Rating: | Insulation Grade: | Moving Speed: |
| 220V ±10% 50/60Hz | 2.5A | 200W/300W/500W | -30°C ~ 50°C | ≤90% | IP44 | E | 18m/min |
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for 12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
Project Reference :

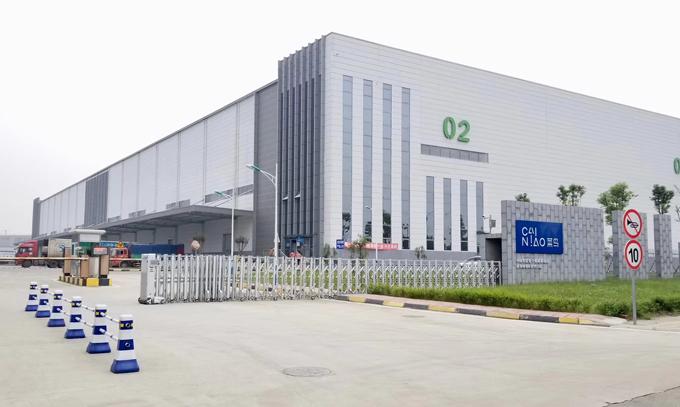

Project Information: CAINIAO logistics
Product Model: H20
Installation: Unilateral Opening
Completion Date: 2016
Services: Consultancy, Design, Manufacture, Installation, Commissioning, Maintenance

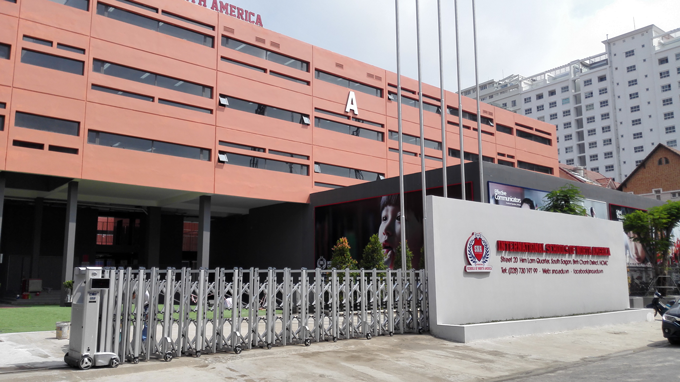

Project Information: The International Schools of North America
Product Model: H20
Installation: Unilateral Opening
Completion Date: 2017
Services: Consultancy, Design, Manufacture, Installation, Commissioning, Maintenance
Project Information: Public Security Bureau
Product Model: H20
Installation: Bilateral Opening
Completion Date: 2017
Services: Consultancy, Design, Manufacture, Installation, Commissioning, Maintenance
