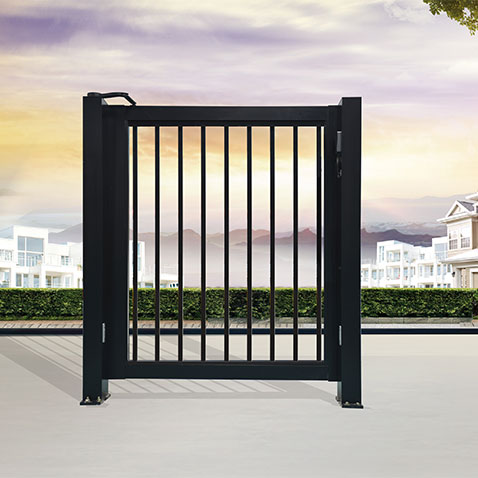

Pedestrian Entrance Gates
Our pedestrian gates provide optimum access control and security for both indoor and outdoor installations. Finishes include aluminium alloy , galvanized steel.
> Electric lock control
> Easy installation, easy maintenance
> Multiple options and finishes available.
> Suitable for outdoor environments.
Product Description
Material : | Aluminium Alloy | Certification : | CE Certified Product |
Operation : | Wireless Remote Control | Wireless Band : | 433XMHz |
Input Voltage : | AC 220V ±10% | Operation Temperature : | -30°C to 70°C |
| Surface Treatment : | Powder Coated | Colors : | Silver /Gray /Customize |
Main Features
> Adopt DC24V control system, security and stability.
> The standard size of the doorway clearance is 1.2m-1.5m,gates height 1.45m (Can be customized)
> Made of high-grade aluminium alloy does not rust and deformation, the surface adopts advanced painting technology, Protection against paint shedding and Color Fading.
> Equipped with electromagnetic lock electromagnetic lock it's very strong and locked in closed situation, and automatic unlock once getting signal of opening.
> The gate owns soft start and soft stop, the function that it rebounds when encountering obstacles at close and function of over-current detection guarantee the safe entrance and exit of the pedestrian.
Specification:
| P701TA | ||||
| Height(H) | 1.0m-1.8m | |||
| Effective Clearance | L≤1.8m | |||
| Technical Specification | |
| Input Voltage | AC 220V ±10% |
| Operating Voltage | DC 24V |
| Rated Power | 35W |
| Open/Close | 3-5s |
| Operating Temperature | -30°C ~ 70°C |
| Environmental Humidity | ≤90% |
| Insulation Grade | E |
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for 12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
