Pedestrian Entrance Gates
Our pedestrian gates provide optimum access control and security for both indoor and outdoor installations. Finishes include aluminium alloy , galvanized steel.
> Electromagnetic lock
> Easy installation, easy maintenance
> Multiple options and finishes available.
> Suitable for outdoor environments.
> Access control system and advertising display.
Product Description
Material : | Aluminium Alloy | Certification : | CE Certified Product |
Operation : | Wireless Remote Control | Wireless Band : | 433XMHz |
Input Voltage : | AC 220V ±10% | Operation Temperature : | -30°C to 70°C |
| Surface Treatment : | Powder Coated | Colors : | Silver /Gray /Customize |
Main Features
> Adopt DC 24V control system, security and stability.
> The standard size of the doorway clearance is 1.2m-1.5m,gates height 1.45m (Can be customized)

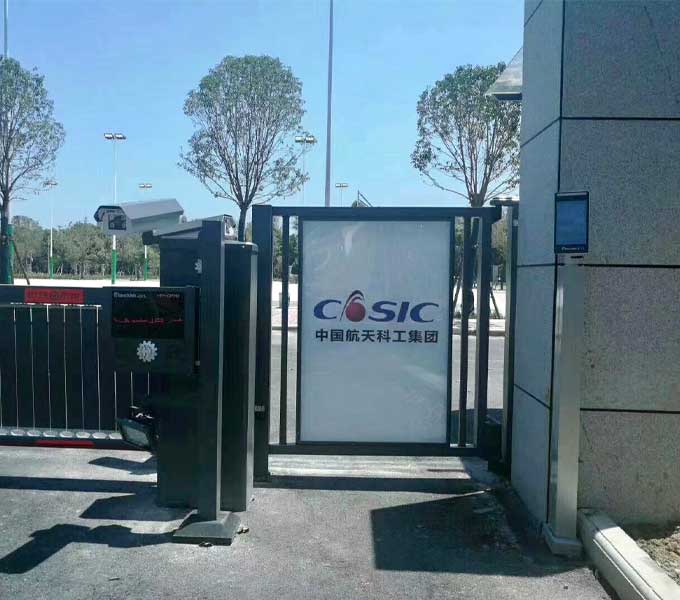

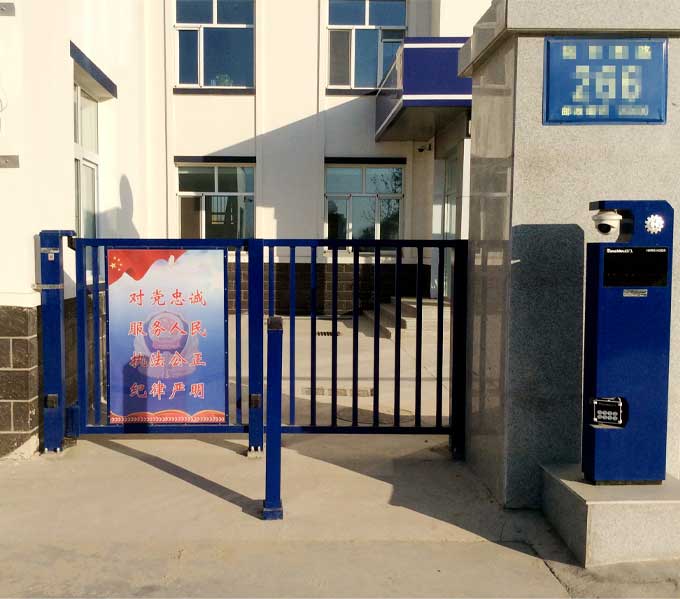

> The gates apply to residential entrance; can be equipped with electric motor, access control system and advertising display system.
> Made of high-grade aluminium alloy does not rust and deformation, the surface adopts advanced painting technology, Protection against paint shedding and Color Fading.
> Equipped with electromagnetic lock electromagnetic lock it's very strong and locked in closed situation, and automatic unlock once getting signal of opening.

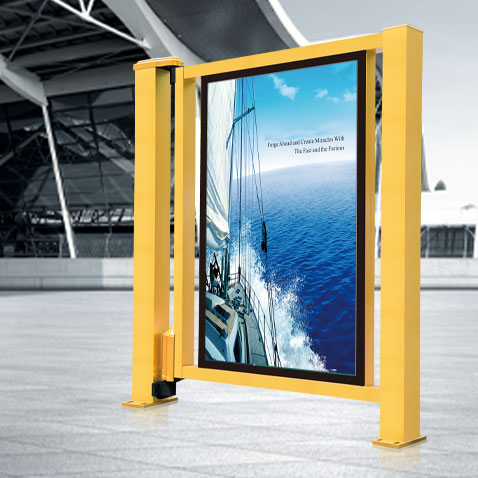

> Both of the two sides support the implantable advertising. The soft mask adopts technology of quick release, AD content can be replaced quickly.
> Highlight LED light bar is internally installed, so the light inside in the light box is uniform and the AD interface is clear and bright.
> Equipped with function of light sensation, open automatically at night (LED light goes out in the daytime) bringing extension of modulator tube's service life, energy conservation and environmental protection.
> The gate owns soft start and soft stop, the function that it rebounds when encountering obstacles at close and function of over-current detection guarantee the safe entrance and exit of the pedestrian.
Specification:

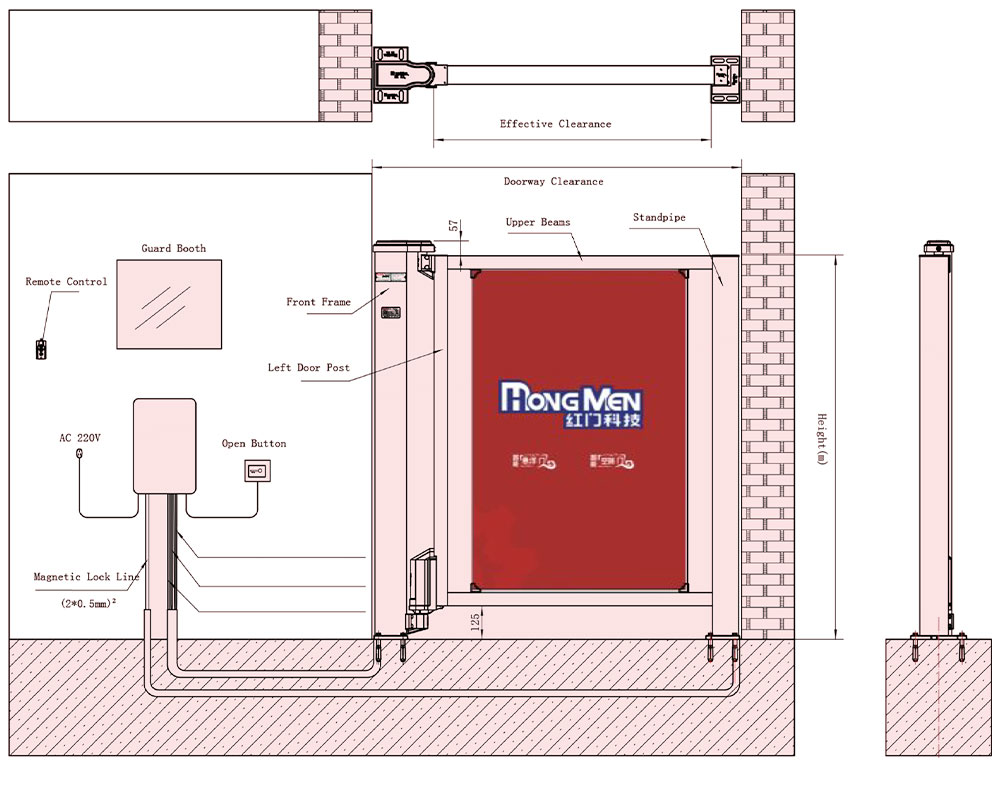

| P701TG | ||||||
| Height (H) | 1.45m | |||||
| Effective Clearance | 1.2m | 1.3m | 1.4m | 1.5m | 1.6m | 1.7m |
| Doorway Clearance | 850mm | 950mm | 1050mm | 1150mm | 1250mm | 1350mm |
| Material Specification | ||
| Front Frame | 6063-T5 | 120*100*2.0 |
| Tail Frame | 6063-T5 | 108*99*1.5 |
| Left/Right Door Post | 6063-T5 | 76*50*1.3 |
| Upper&Lower Deams | 6063-T5 | 70*50*1.2 |
| Standpipe | 6063-T5 | 39*29.1.0 |
| Technical Specification | |
| Input Voltage | AC 220V ±10% |
| Operating Voltage | DC 24V |
| Rated Power | 35W |
| Open/Close | 3-5s |
| Operating Temperature | -30°C ~ 70°C |
| Environmental Humidity | ≤90% |
| Insulation Grade | E |
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for 12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
