P701(Manual)

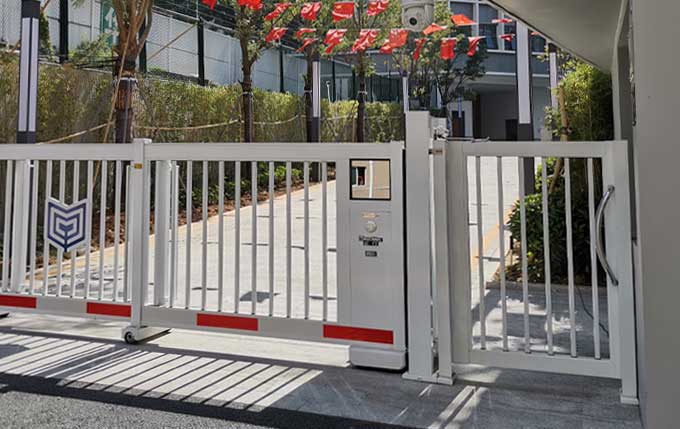

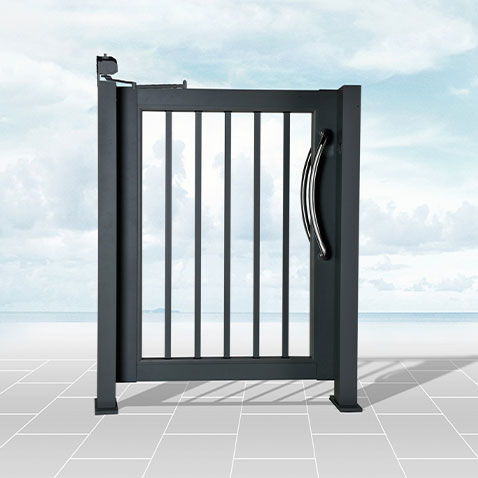

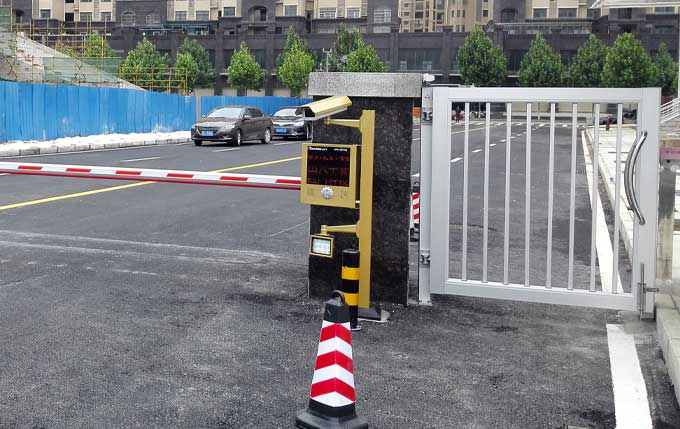

Pedestrian Entrance Gates

Our pedestrian gates provide optimum access control and security for both indoor and outdoor installations. Finishes include aluminium alloy , galvanized steel.

>    Electric lock control

>    Easy installation, easy maintenance

>    Multiple options and finishes available.

>    Suitable for outdoor environments.


contact now

Product Description



 Material :

   Aluminium Alloy

Certification :

   CE Certified Product

 Operation :

   Wireless Remote Control

Wireless Band :

   433XMHz

 Input  Voltage :

   AC 220V ±10%

Operation Temperature :

   -30°C to 70°C

Surface Treatment :

   Powder Coated

Colors :

   Silver /Gray /Customize



Main Features


>    Adopt DC24V control system, security and stability.


>    The standard size of the doorway clearance is 1.2m-1.5m,gates height 1.45m (Can be customized)


>    Made of high-grade aluminium alloy does not rust and deformation, the surface adopts advanced painting technology, Protection against paint shedding and Color Fading.


>    Equipped with electromagnetic lock electromagnetic lock it's very strong and locked in closed situation, and automatic unlock once getting signal of opening.


>    The gate owns soft start and soft stop, the function that it rebounds when encountering obstacles at close and function of over-current detection guarantee the safe entrance and exit of the pedestrian.





Specification:


 P701TA
  Height(H)  1.0m-1.8m
  Effective Clearance  L≤1.8m



 Technical Specification
 Input Voltage AC 220V ±10%
 Operating Voltage DC 24V
 Rated Power 35W
 Open/Close 3-5s
 Operating Temperature -30°C ~ 70°C
 Environmental Humidity ≤90%
 Insulation Grade E




Warranty:


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)
