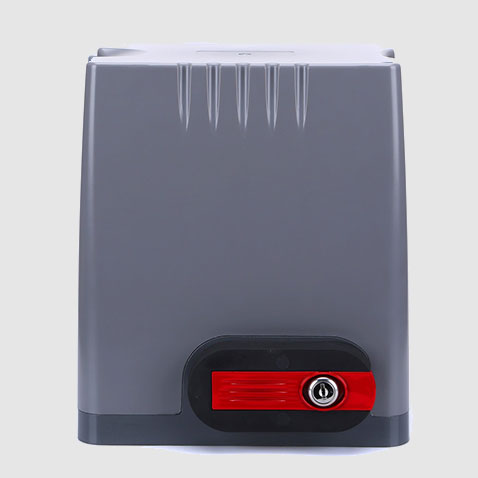

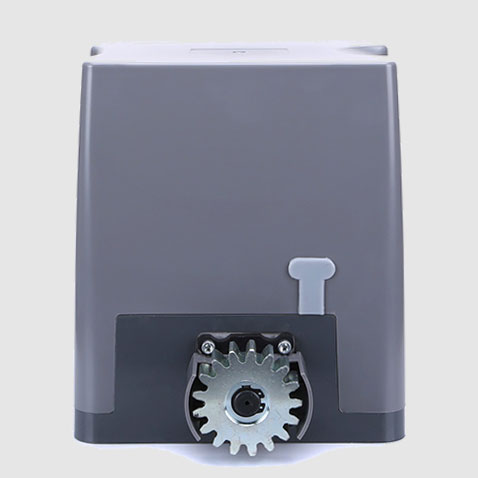

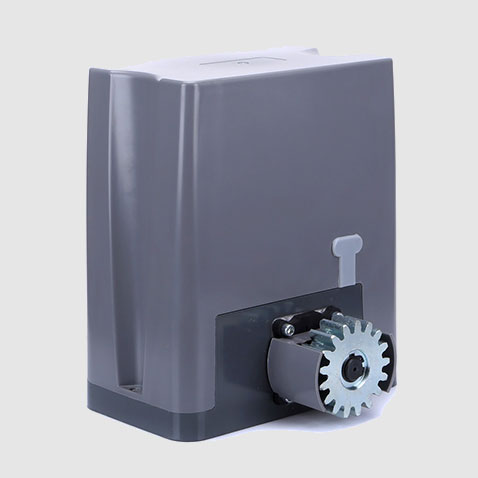

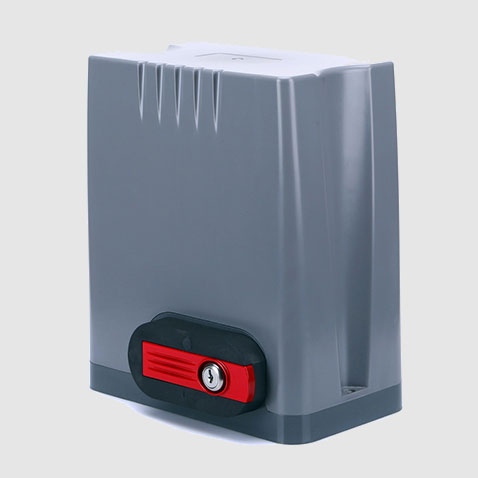

Residential / Light Commercial Slide Gate Operator
< The HQC500/HQC800 gate operator designed for residential use, weight up to 500/800 Kg and operating distance up to 8 meters.
< CE Certified.
< Built-in control board, optional for backup battery and solar charger.
< User can select auto-close function.
< Solar system compatible.
< DC24V motor with built-in control unit.
Product Description
Model : | HQC500&800 | Certification : | CE Certified Product |
Limit Switch : | Magnetic Limit Switch | Gate Weight : | 500KG or 800KG |
Operation Voltage : | AC 110V / AC 220V | Operation Temperature : | -20°C to 70°C |
| Drive Method: | Gear | Backup Battery : | Optional |
Main Features
> The automatic timer function that closes your gate after a pre-defined period, or the option to open the gate only partially for people to pass through.
> In the event of a power failure, the rotation of the (key protected) release device makes it possible to open and close the gate manually.
> The soft start and soft stop function guarantees stable, quiet gate travel.
> Can be equipped with solar panels, warning lights and infrared alarm and other safety equipment; it can be connected with access control system to realize automatic identification and access control.
> The gate encounters obstacles or pedestrians, when it is opening, the gate will stop operation, if the gate encounters obstacles or pedestrians when it is closing, the gate will automatically retract.
| Model: | HQC500 | HQC800 |
| Input Voltage: | AC 220V/50Hz; AC 110V/60Hz | |
| Working Temperature: | -20°C to 70°C | |
| Motor Power: | DC 24V/150W | DC 24V/170W |
| Output Torque: | 14N.m | 18N.m |
| Output Shaft Height: | 46mm | 15m/min |
| Limit Switch: | Magnetic Limit Switch | |
| Gate Moving Speed: | 13m/min | 15m/min |
| Remote Control Mode: | 4-Button Mode | |
| Work Duty: | S2 20min | |
| Noise: | ≤58dB | |
| Driving Weight: | Gear | |
| Package Weight: | 11.32KG | 10KG |
| Backup Battery: | Optional | |
Warranty:
1. Standard warranty for all components is valid for 12 months from the date of delivery
2. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
