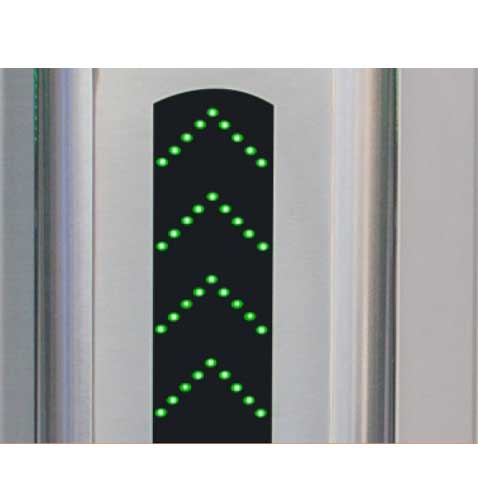

> LED Direction indicators
> Selectable operating modes- single directional, bi-directional
> IP 54 Ingress Protection rating
> Anti-collision, anti-Reverse, anti-intrusion, anti-trailing
> Infrared sensor to prevent pinch pedestrians
Detailed Product Description:
| Brand Name: | HongMen | Model: | HTY01 |
| Dimension: | 1410*330*1044mm | Pathway width: | 670mm |
| Main material: | SUS304 | Flap material: | Reinforced glass |
| Power supply: | AC 220V,±10% | Power rating: | 200W |
| Input voltage: | DC 24V | Peak current: | 1.8A |
| Opening Speed: | 0.6s | Operating Speed: | 30 Persons/min |
Main Features:

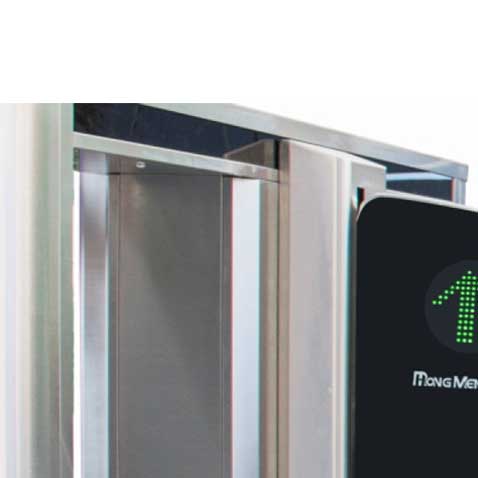

Within direction indicator to show the current status of the passage to pedestrians, guide pedestrians to pass correctly and quickly.
Using several pairs of infrared sensors to prevent pedestrians from illegally entering the passage, protecting pedestrians from passing the passage smoothly and preventing trailing functions.
Within automatic reset function, after reading the card, if the pedestrian does not pass within the time specified by the system, the system automatically cancels the permission of this pass, and the reset time value can be set online.
It can be expanded into an automatic identification system to realize functions such as access control, attendance, and charges.
DC Motor, brand drive module, runs smoothly, low noise.
Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering complete entrance control solutions.
Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
Anti-collision function, the flaps will stay close if not receiving the open signal.
Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency.
Pedestrian flow directions can be single or Bi-directional.
Product Specification:

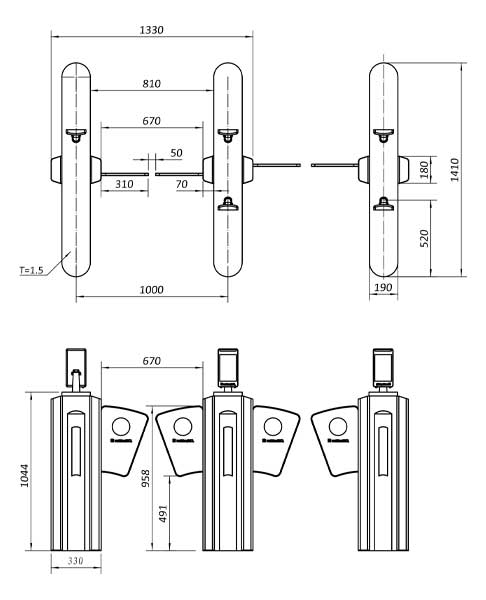

| Dimension: | 1410*330*1044mm |
| Pathway width: | 670mm |
| Power supply: | AC 220V,±10% |
| Input voltage: | DC 24V |
| Power rating: | 200W |
| Peak current: | 1.8A |
| Motor: | DC servo motor |
| Operation temperature: | -25°C~ 65°C |
| Operation humidity: | 95% (No condensation) |
| IP rating: | IP54 |
| Sound: | Buzzer |
| Infrared Sensors: | 6 Pairs |
| Passage direction: | Single/Bi-directional |
| Noise: | ≤60dB |
| Opening speed: | 0.6s |
| Opearting speed: | 30 Persons/min |
| Lighting effects: | Courtesy/lamp/indicator lamp |
| Communication interface: | RS232/RS485/CAN |
| Main material: | SUS304 |
| Flap material: | Reinforced glass |
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for 12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)

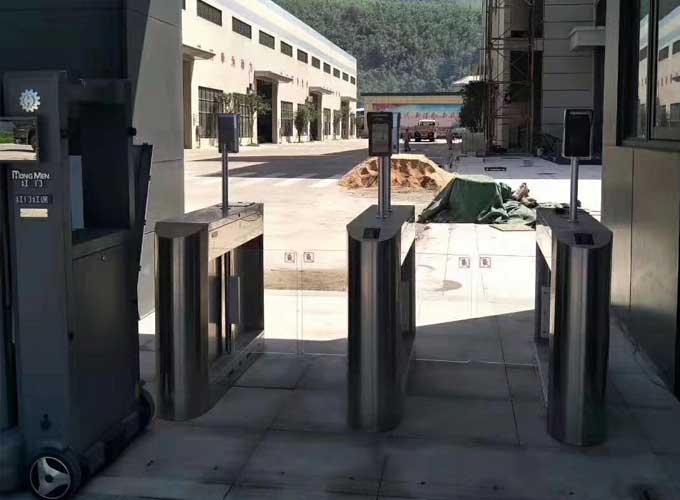

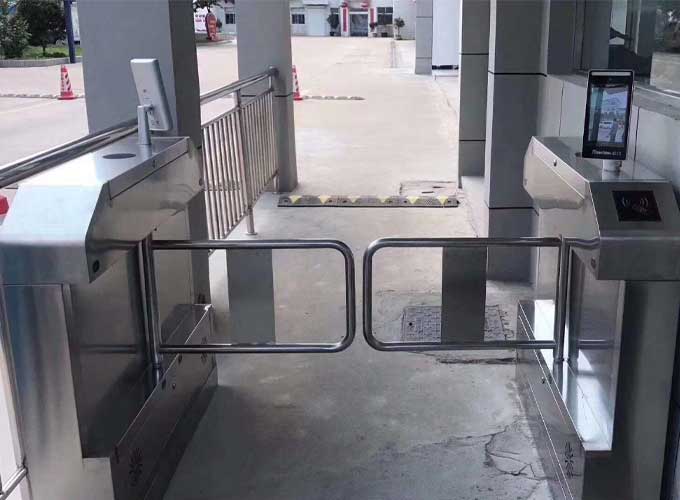

Project Reference:
