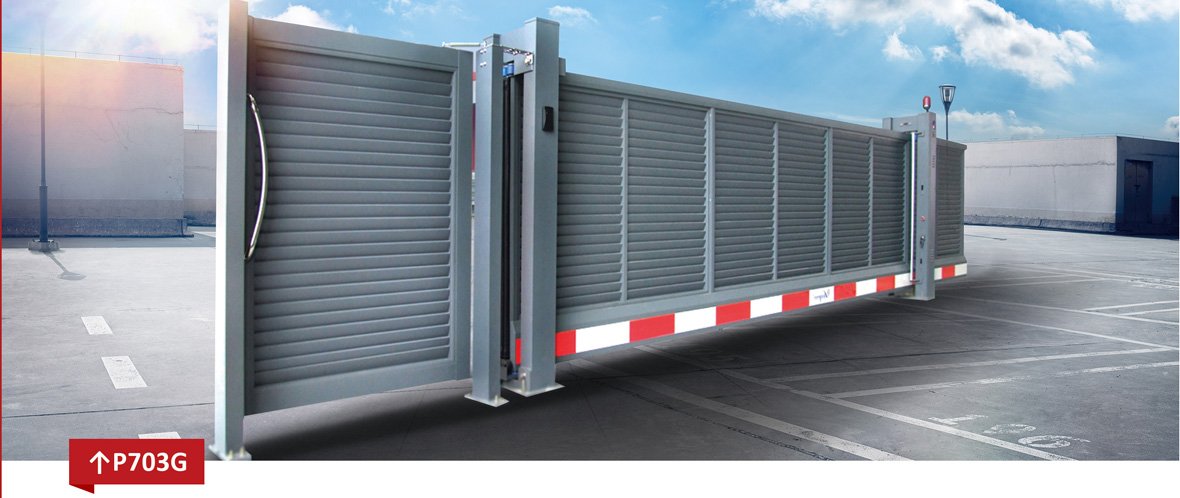

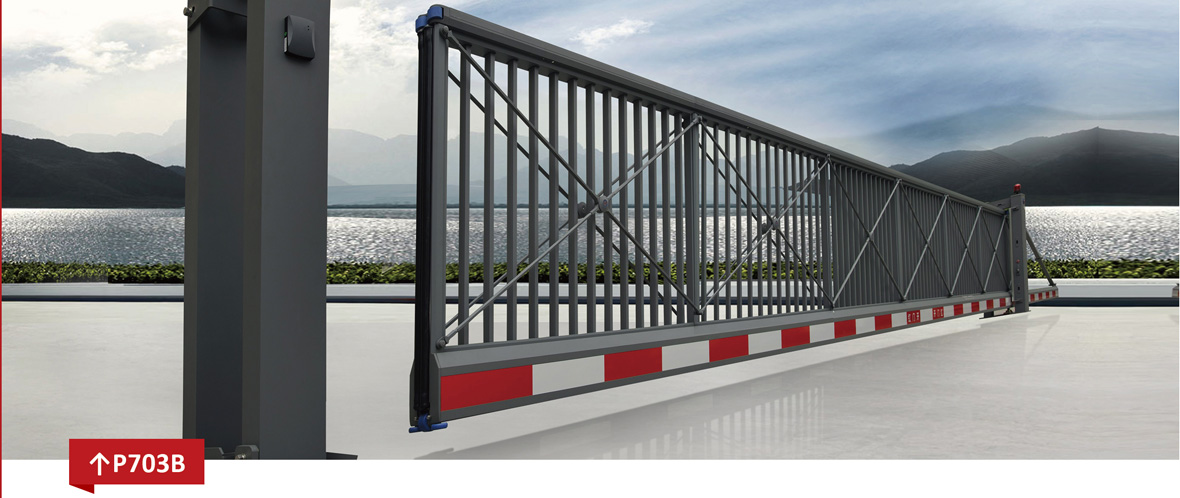

P703

There are a number of benefits in choosing a cantilever sliding gate over the traditional track style, not need any wheels and rails, it makes suspension movement. It generates less noise compare to wheel and rail gates.

contact now

Product Description


Material :

Aluminium Alloy

Certification :

CE Certified Product

Operation :

Wireless Remote Control

Wireless Band :

433MHz

Operation Voltage :

220V AC / 36V DC

Operation Temperature :

-40°C to 80°C

Surface Treatment :

Powder Coated

Colors :

Silver /Gray /Customize







Main Features :


Motor overload protection

The motor has overload and overheating protection function to protect and prolong the life span of the motor. During an outage, the clutch can be disengaged to open the gate manually with easy & steady.



EMO Button (Emergency Stop Button)

Emergency stop button is used while any emergent problems happens.



Modular Design

The gate can be disassembled and pack in groups, convenient for transportation and easy to install on site.



Trackless Operation

The gate does not need any wheels and rails, it makes suspension movement. It generates less noise compare to wheel and rail gates.



Smart Power Outage Clutch

In case of power failure, the gate comes with a unique key to unlock the clutch in order to manually open/close the gate.



Wireless Remote Control

Carry it on you and control the gates opening and closing conveniently any time, the control distance up to 50M.



Anti- Collision IR Sensor

The gate also equips with anti-collision function, when there is obstacle detected up to 600mm distance during closing mode, the gate will automatically retrieve and stop for 2 seconds.



Anti- Climb Photo Cell

The gate also equips with anti-climb alarm system, when there is an obstacle detected on top of the gates, the alarm system will turn on siren.

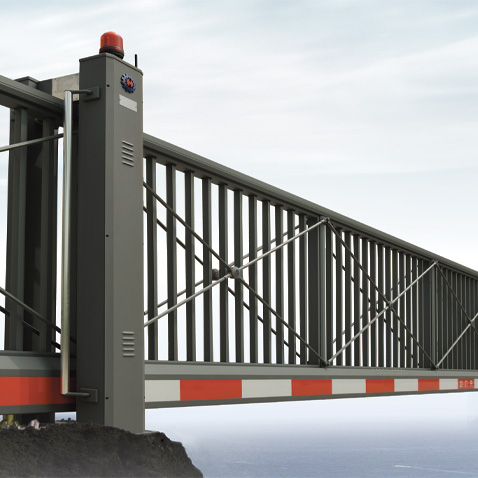

Security and Visibility

Equipped with caution lamp, it will rotate during gate in operation mode, to increase safety awareness.

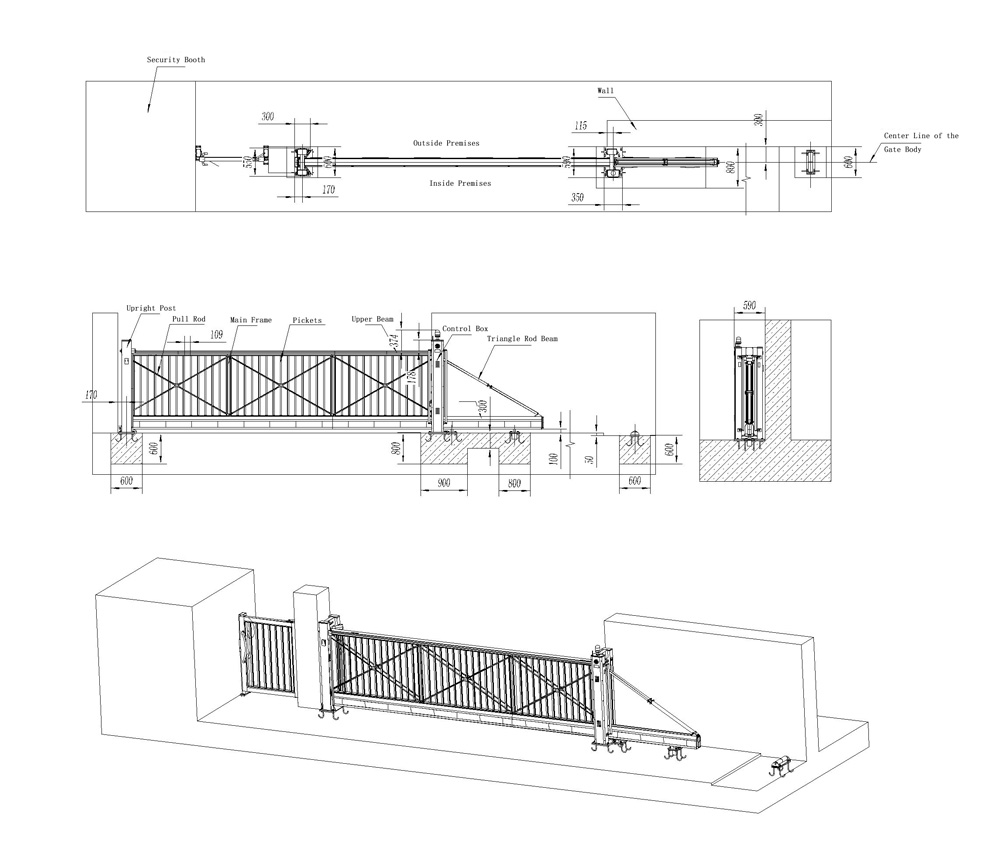

  Material Specification
  Parts
  Material      Hardness (HW)              Specification (mm)

  Main Slide Bar

  6005-T5  13-15     245*170*d4-9
  Upper Beam  6063-T5  10-13      120*65*d2-3
  Gate Frame  6063-T5  10-13      98*60*d1.2
  Upright Post     6063-T5  10-13      180*100*d3
  Control Box  6063-T5  10-13      230*130*d3.5
  Pull Rod  6063-T5  10-13      20*φ8
  Triangle Rod Beam       SUS 304  N/A  60*40*d1.5
  Pickets  6063-T5  10-13  38*25*d1




  Product Specification

  Operation Voltage:      Control Voltage:
  Current:       Power:  Motor RPM:  Operation Temperature:
  220V ±10% 50/60Hz       AC 220V / DC 36V  1.5A     250W
  1400r/min       -25°C to 70°C
  Insulation Grade:      Environment Humidity:      IP Rating:      Speed Reduction Ratio:      Remote Distance:  Receiver Frequency:
  E  ≤90%  IP44  30 : 1  50m (Empty Space)     433MHz




Warranty:


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)


Project Reference :

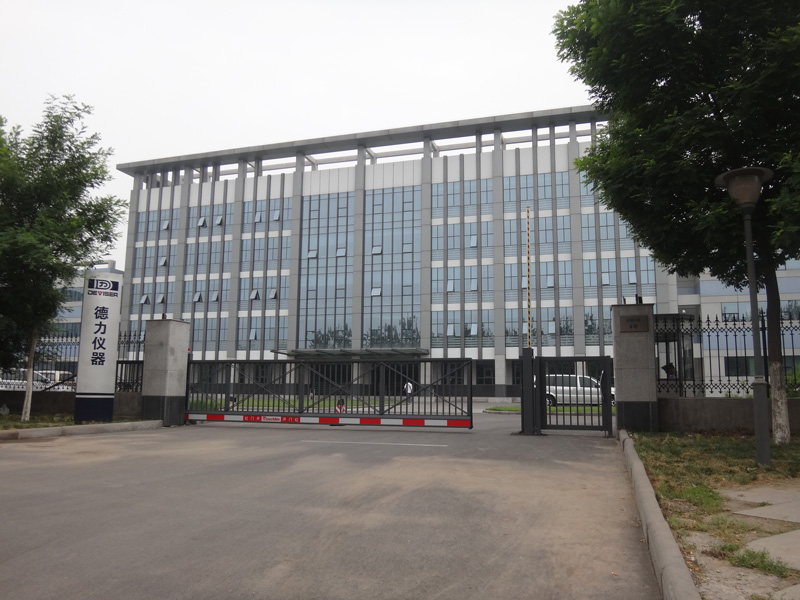

  Project Information: iIndustrial Park


  Product Model: P703


  Installation: Unilateral Opening


  Completion Date: 2014


  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance

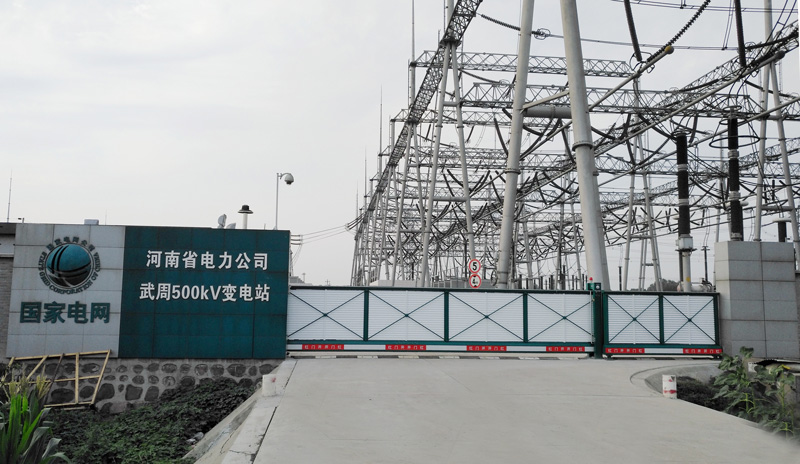

  Project Information: Power Grid


  Product Model: P703


  Installation: Unilateral Opening


  Completion Date: 2017


  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance

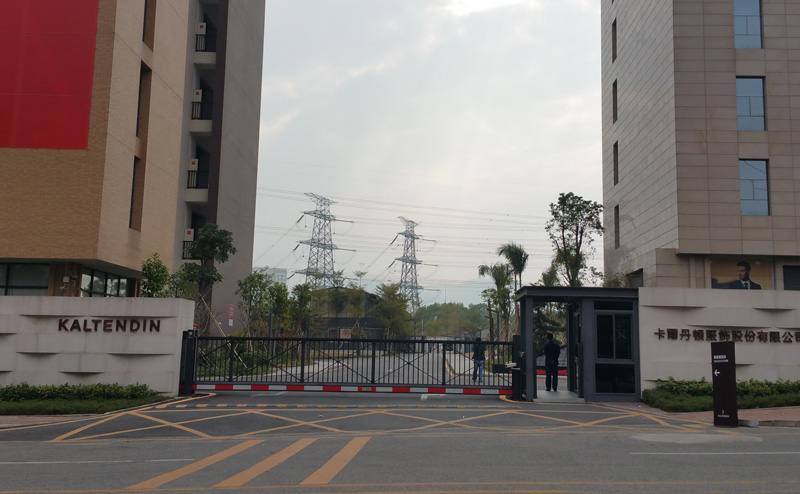

 Project Information: KALTENDIN


  Product Model: P703


  Installation: Unilateral Opening


  Completion Date: 2015


  Services: Consultancy, Manufacture, Installation, Commissioning, Maintenance
