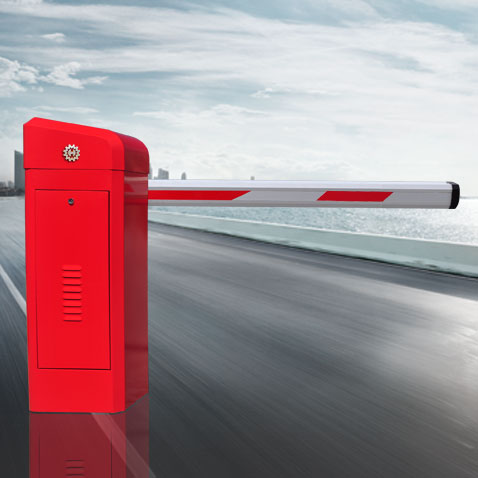

◆ Wide range of models to suit various applications like car parking sites, condominiums, toll collection &Industrial entrance
◆ Available for boom length up to 6 m. Opening up to 12 m can be covered with two barriers
◆ Speed 1.5s
Detailed product Description
Input Volatage: | 220V AC ±10% | Motor Power Rating : | 70W |
IP Rating: | IP44 | Insluation Grade: | E |
Operating Temperature: | -30°C~ 60°C | Environmental HumHumidity | ≤90% |
Weight: | 50KG | Colors : | Red /Orange/Customized |
Main Features :
1. Stamped by the parts, compact and lightweight, and the motor and reducer are designed conjointly with low noise.
2. The motor overheat protection system makes it effectively control the temperature of the motor, when working frequently.
3. Equipped with different arm to meet the needs of different scenarios.
4. While moving down arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm.
5. In the event of power failure, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier arm can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.
6. In the cold areas, the thermostat can be added to make the motor work normally
7. Possess the landing beam delay protection, effectively prevent the limiter from malfunctioning and protect the motor.
8. The pressure wave, infrared column, loop detector and other protective devices can be added to improve safety.
Specification:
| Electrical Specification | |
| Input Voltage | 220V AC ±10% |
| Motor Power | 70W |
| Motor RPM | 400r/min |
| Operating Temperature | -40°C to 80°C |
| Environmental Humidity | ＜90% |
| Insulation Grade | E |
| IP Rating | IP44 |
| Wireless Remote Distance | 50m(Empty Space) |
| Weight (KG) | 50KG |

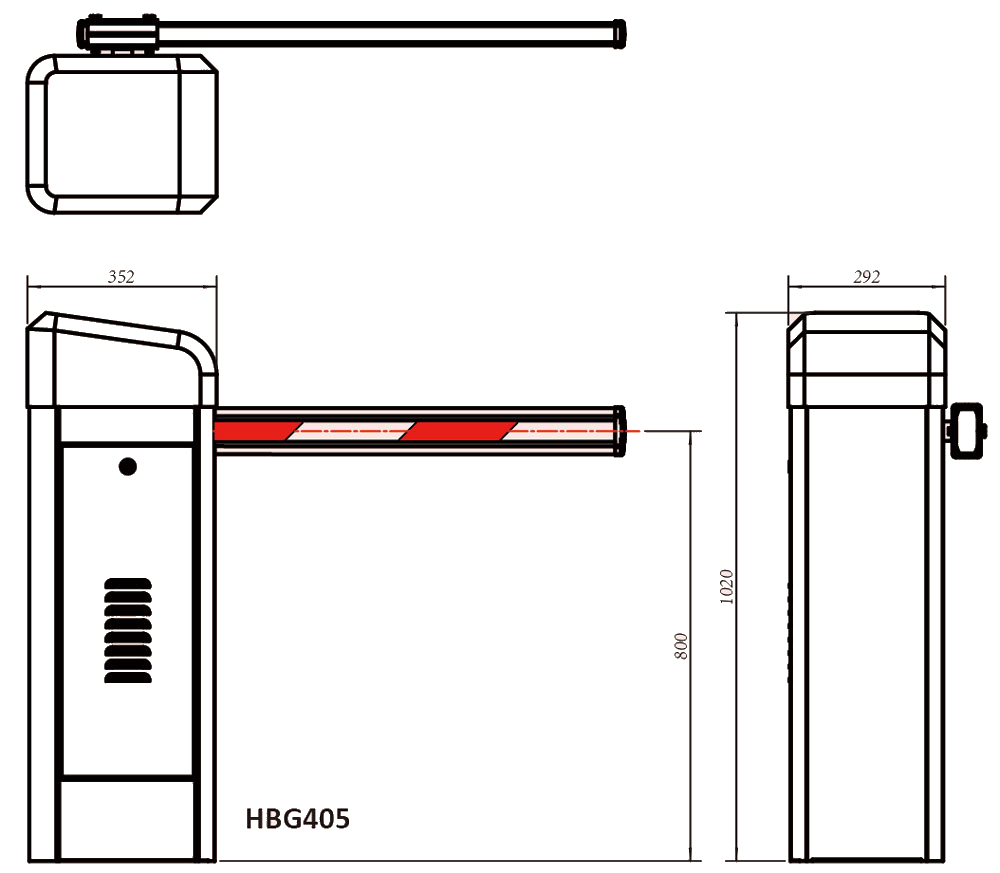

| Ground Clearance of Arm (mm) | 800 |
| Optional Type | |||
| Type | Max Length(m) | Opening Time(s) | Closing Time(S) |
| Straight Arm-M | 6 | 6 | 6 |
| Straight Arm-M(H) | 4.5 | 4 | 4 |
| Straight Arm-Z | 4.5 | 4 | 4 |
| Straight Arm-K | 3 | 1.5 | 1.5 |
| Articulated Arm-H | 6 | 6 | 6 |
| Articulated Arm-M(H) | 4.5 | 6 | 6 |
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for 12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)

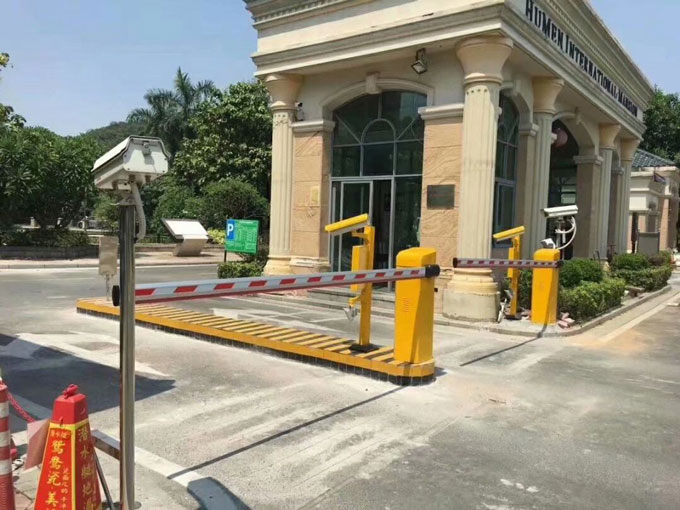

Project Reference:
