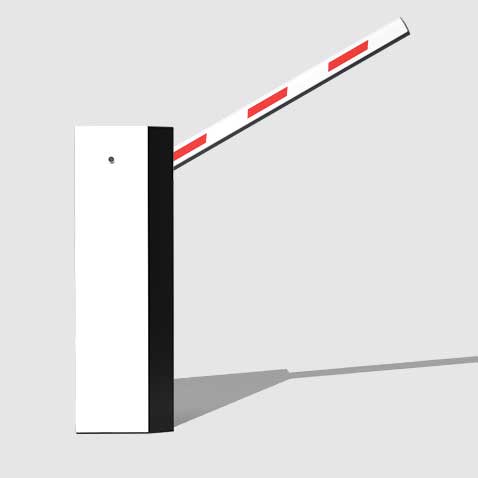

HBG-408C


  •     Wide range of models to suit various applications like car parking sites, condominiums, toll collection &Industrial entrance


  •     ◆ Available for boom length up to 6 m. Opening up to 12 m can be covered with two barriers


  •      ​◆ Speed 0.7s



contact now


Detailed Product Description


​Material:

Aluminium Alloy

Motor Power Rating :

100W

Operation:

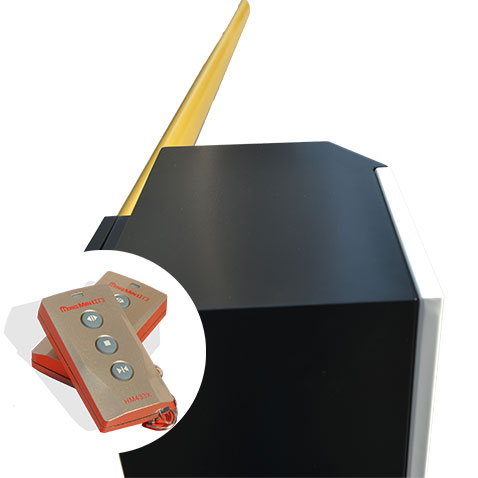

Wireless Remote Control

Wireless Band:

433/434MHz

Surface Treatment:

Powder Coated

Operation Temperature:

-30°C to 60°C

Voltage:

220V AC ±10%

Colors :

Red /Orange /Customized


Main Features :


  1. 1. The barrier chassis is made of aluminum alloy, separated assembly structure, no welding.


  2. 2. Equipped with Brushless servo DC motor, high speed, high torque, low noise and low heat.


  3. 3. With a single, fleet, counting and other application modes.


  4. 4. The landing time of the beam is 0.7 seconds and can be quickly passed without waiting.


  5. 5. Adopt integrated intelligent high-speed brushless control technology to ensure that the action of the landing gear is more stable, and multiple expansion ports are reserved.


  6. 6. The system has a limiting position self-locking function and an artificial lift alarm function.


  7. 7. Automatic detection after power failure, keeping the landing beam vertical or horizontal.


  8. 8. The pressure wave, infrared column, loop detector and other protective devices can be added to improve safety.







Specifications:





Technical Specifications
 Input Voltage220V AC ±10%
 Motor Power100W
 Motor RPM3000r/min
 Operating Temperature-25°C to 60°C
 Environmental Humidity<90%
 Insulation GradeE
 Wireless Remote Distance        50m(Empty Sapce)
 Weight (KG)30KG

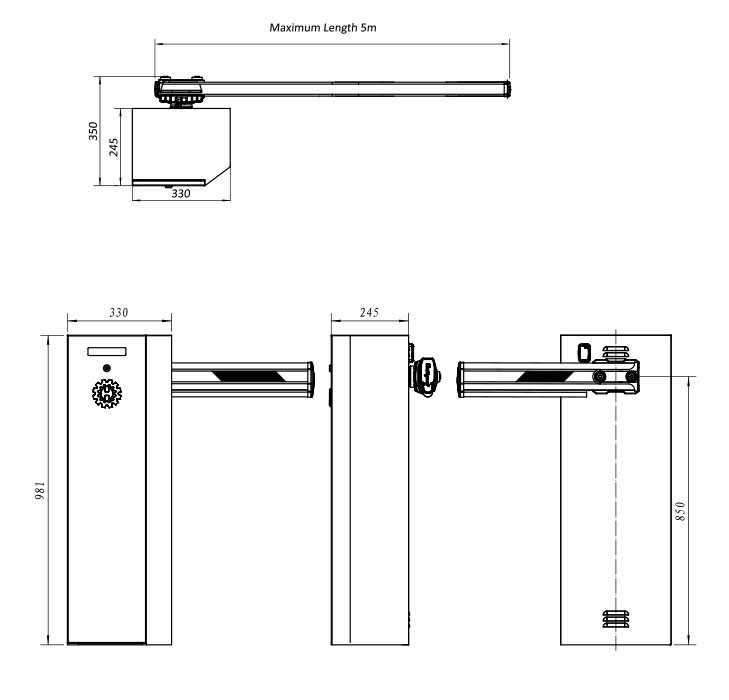

 Ground Clearance of Arm (mm)     850







Optional Type
​TypeMax Length(m)Opening Time(s)Closing Time(S)Ratio(i)
 Straight Arm4.53/4.53/4.5124:1
 Octagon Connect Arm 4.53/4. 3/4.5
 Ellipse Straight Arm4.53/4.53/4.5
 31.51.568:1
 Ellipse Connect Arm  31.51.5

 Ellipse Straight Arm

 (With LED Stripe)

4.54.54.5124:1
 Round Connect Arm31.51.568:1
30.70.7
 Round Straight Arm3
1.51.5
30.70.7


Warranty:


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)

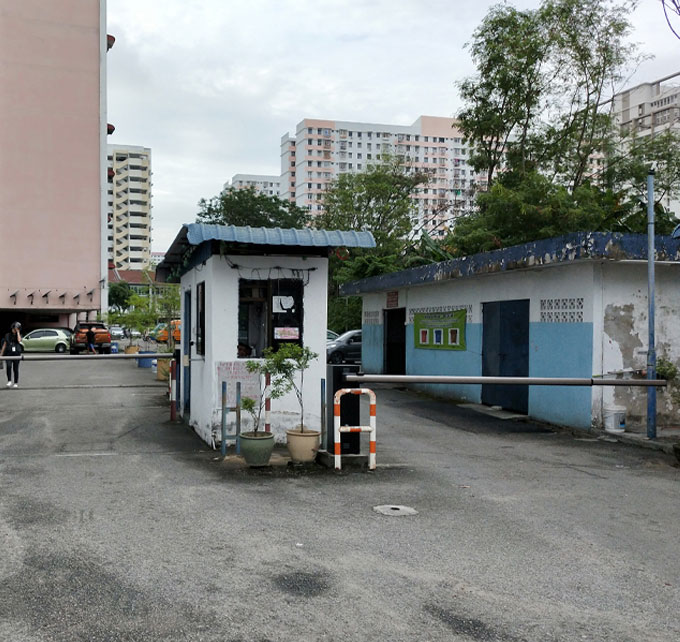

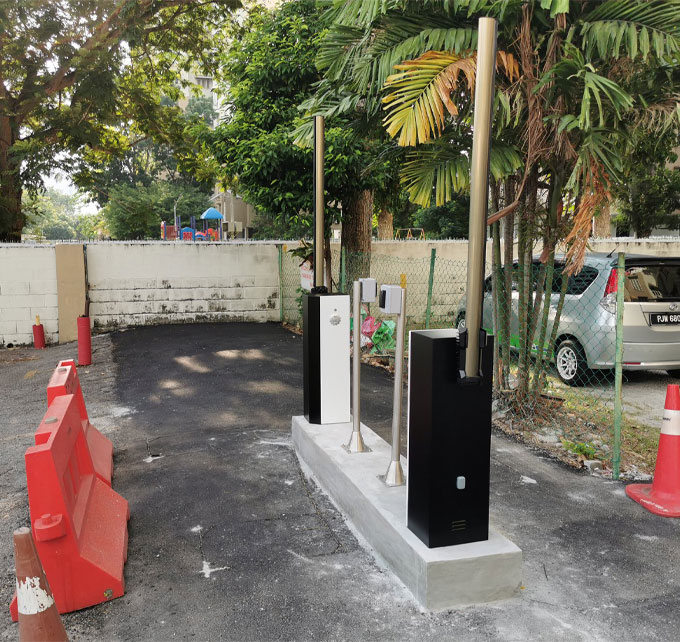

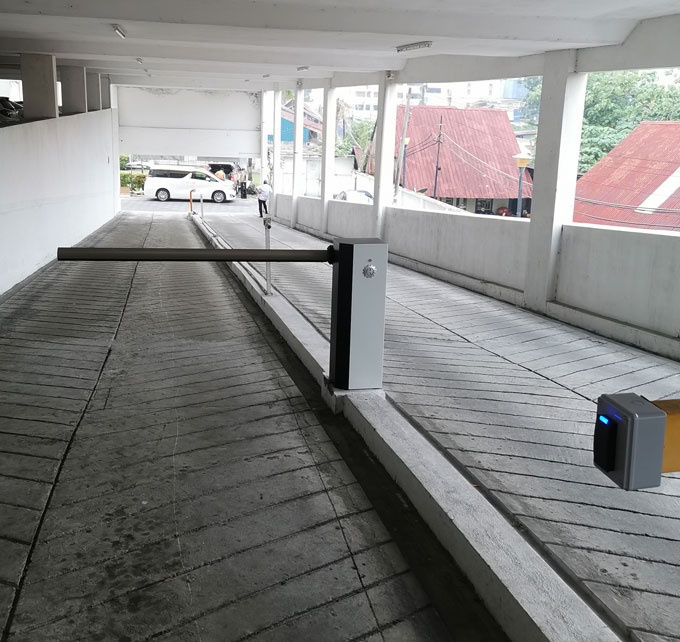

Project Reference:
