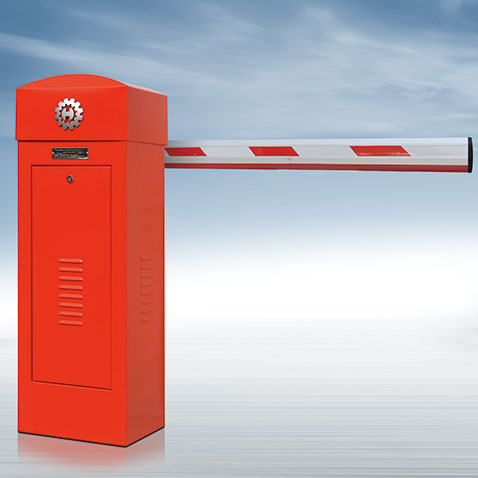

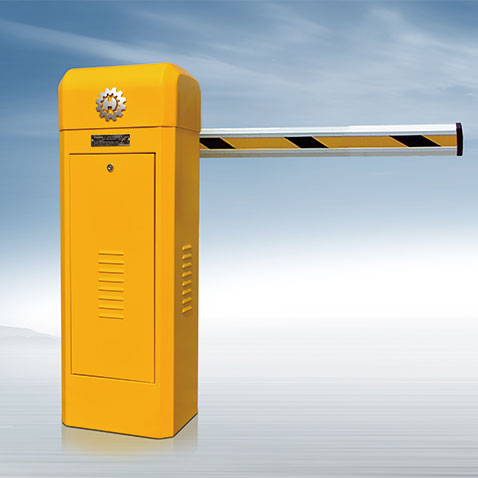

Parking Barrier
  • ◆ The parking gate barrier is a safe solution to stop unauthorized vehicle from accessing. They are widely used at parking lot, traffic or toll system. Users can control the parking gate barrier with remote controller or manual button, which is very convenient.

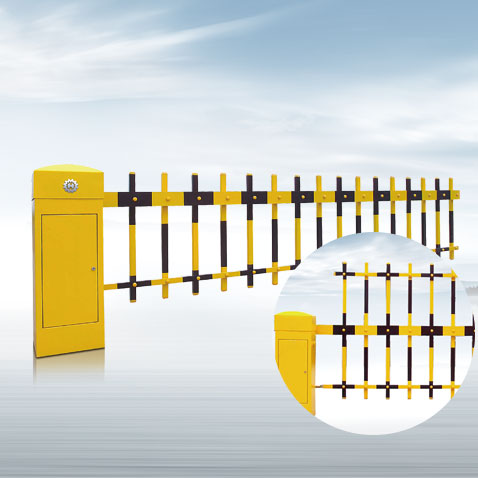

  • Fenced Barrier

  • ◆ Fence barrier gates series has a more complex structure but can prevent unauthorized access and has other basic security functions to provide a safe and secure living environment.

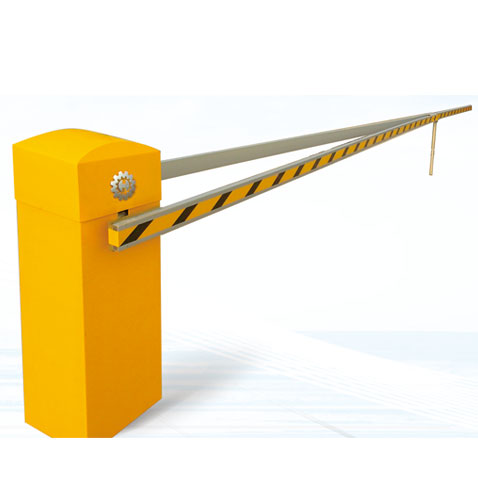

  • Double Arm Barrier

  • ◆ The straight arm is designed to move the center of gravity to the center and has a more stable structure and reliable operation.



contact now

Detailed product Description


Input Volatage:

220V AC ±10%

Motor Power Rating  :

70W

IP Rating:

IP44

Insluation Grade:

E

Operating Temperature:

-30°C~ 60°C

Environmental HumHumidity

≤90%

Weight:

55KG/84KG/120KG

Colors :

Red /Orange/Customized



Main Features:

1. The motor overheat protection system makes it effectively control the temperature of the motor, when working frequently.


2. Equipped with different arm to meet the needs of different scenarios.


3.The pressure wave, infrared column, loop detector and other protective devices can be added to improve safety.


4. can be equipped with different Arm Type.

5. Safety --Anti-hit by Loop Detector (Optional)

While barrier boom moving down, if a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.




Specifications:








Electrical Specifications
 Input Voltage 220V AC ±10%
 Motor Power 70W
 Motor RPM 400r/min
 Operating Temperature -30°C to 60°C
 Environmental Humidity <90%
 Insulation Grade E
 IP Rating IP44
 Wireless Remote Distance 50m(Empty Space)
 Weight (KG) 55KG/84KG/120KG

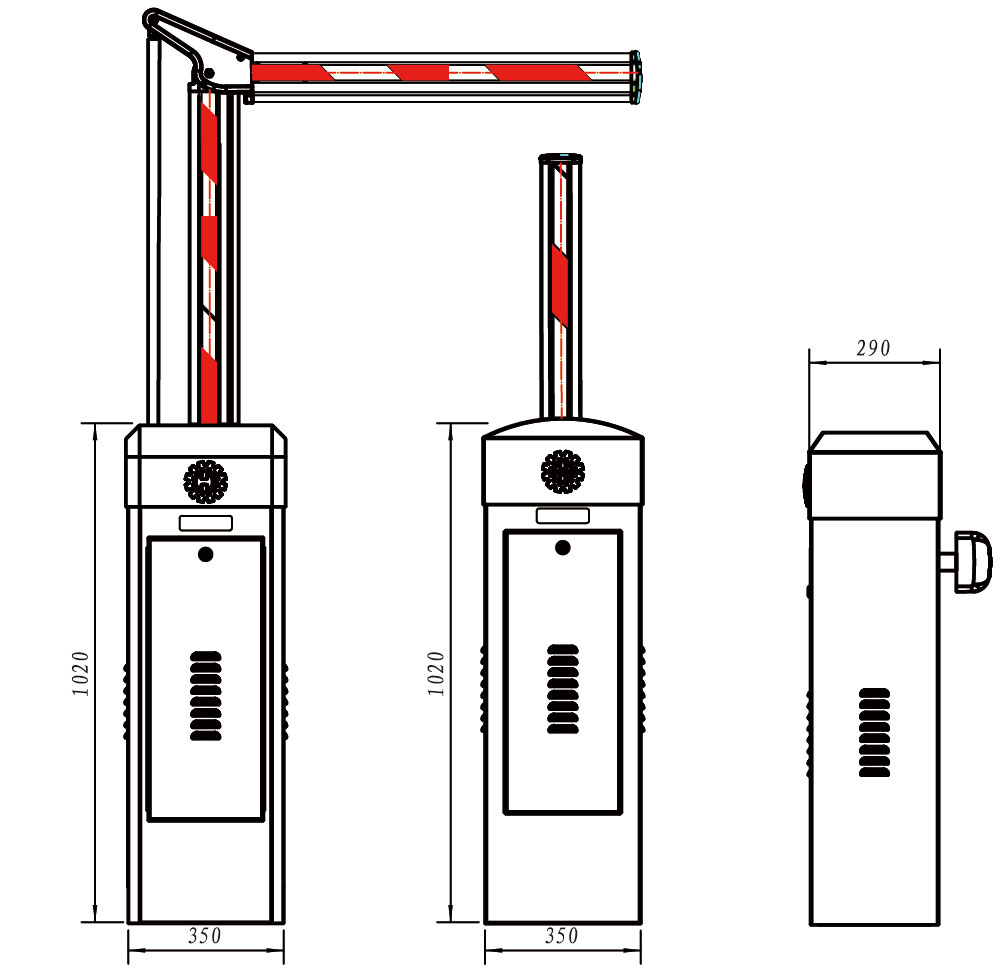

 Ground Clearance of Arm (mm)      800/893








Optional Type
TypeMax Length(m)Opening Time(s)Closing Time(S)
 Straight Arm-M666
 Straight Arm-Z4.544
 Straight Arm-K4.544
 Straight Arm-K 31.51.5

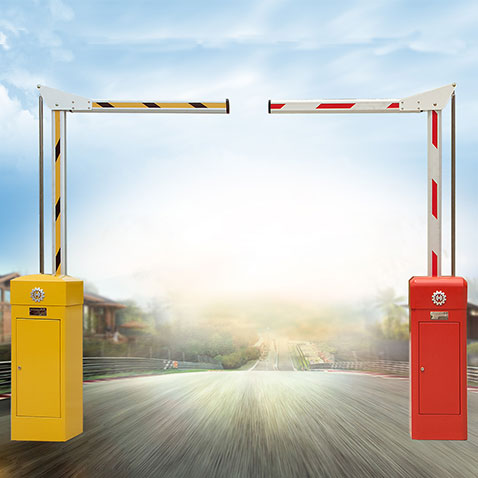

 Articulated   Arm-K66
6
 Articulated   Arm-M4.56
6

 Fenced Arm (2)-M
5
99
 Fenced Arm(3)-M4.599
 Double Arm
101313


Warranty:


         1. Drive Motor is warranted against manufacturer’s defect for lifetime
         2. Standard warranty for all components is valid for 12 months from the date of delivery
         3. This warranty does not include damages caused by:
               a. Wear and Tear
               b. Theft
               c. Accidents
               d. Act of God & Natural Disaster
               e. Unstable power supply (i.e. inconsistent voltage or lightning)



Project Reference:

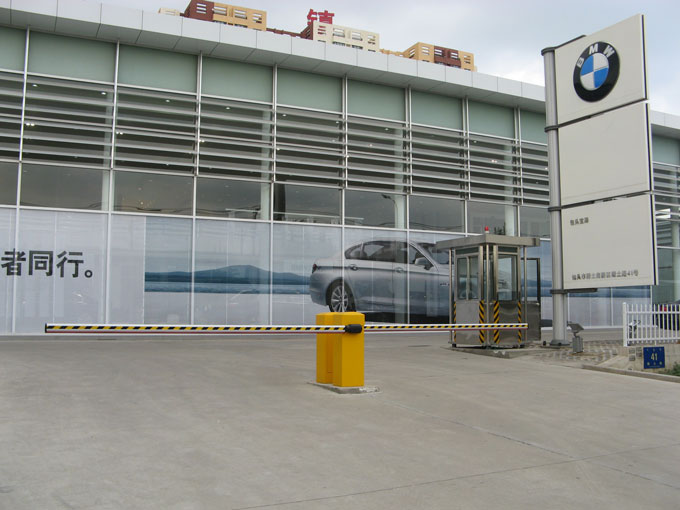

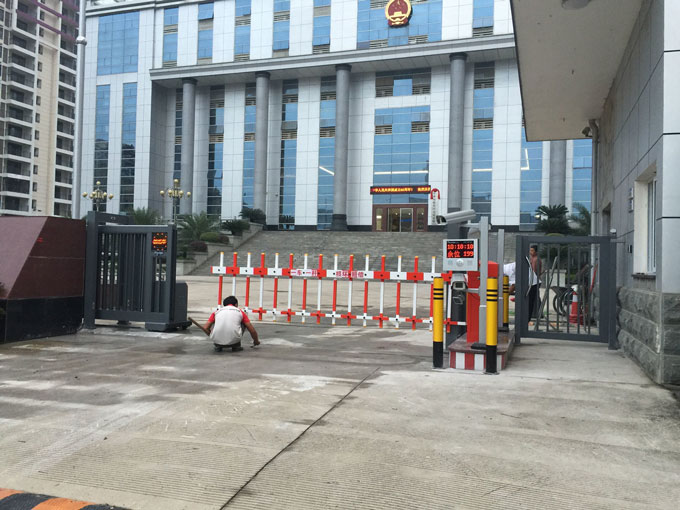

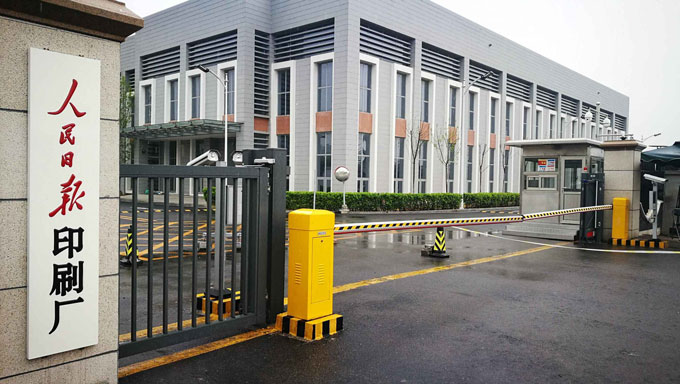

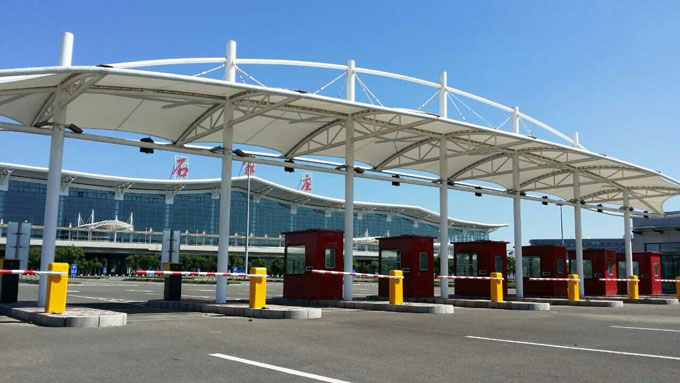

Parking Barrier Project 1.jpg


Parking Barrier Project 2.jpg

Parking Barrier Project 3.jpg

Parking Barrier Project 4.jpg
